Mini UPS with 12WA-DC Output

Compatible with RAK7268V2/CV2

Please note - as this includes a battery it is regarded as DG (Dangerous Goods) by the international shippers, and so whilst yes you might see a cheaper online price from RAK's online store this is not allowing for the very expensive freight that you would incur should you purchase it. Thanks for your understanding

Product Description

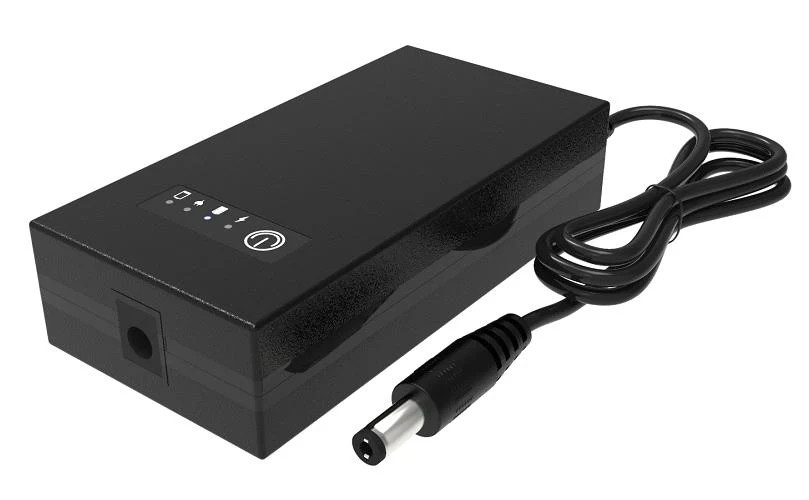

The 12WA DC Mini UPS is a reliable standby backup power supply with li-ion cells. It is specially designed for the RAK LoRaWAN gateway (or IoT Devices) with 12V DC input. It features a high-grade battery charging BMS IC with constant current/constant voltage for optimal performance. The Mini UPS is equipped with robust overcharging, over discharging, overcurrent, and short-circuit protection mechanisms to ensure the safety of your devices.

This Mini UPS ensures that your equipment remains powered on for 1.5-2 hours during a power outage. It's the ultimate solution to keep your devices running seamlessly, even in challenging circumstances.

For customers using the RAK7268 WisGate Edge Lite 2 with a DC power supply, the 12WA DC Mini UPS is the perfect fit. It's tailored to provide reliable backup power precisely where you need it.

Product Features

• Rated Capacity: 19.2Wh
• Input Voltage: 12V±5%
• Output Voltage: 12V±5%
• Output Current: ≤1000mA
• Working Temperature: 0℃~+45℃
• LEDs for monitoring the working mode – Charging, Discharging, Passing mode

Documentation

• Datasheet
• Quick Start Guide
