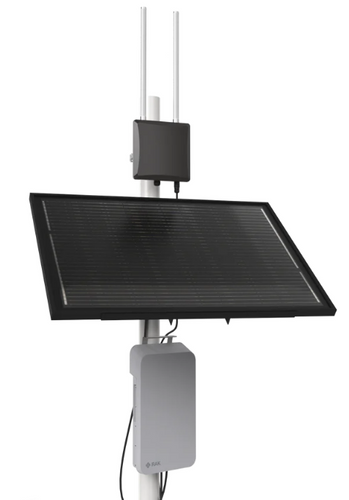

RAK Battery Plus & Solar Panel Kit

Image 1

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
RAKwireless
US$933.79
SKU:
RAK9155-910375
Condition:
New
Availability:
We accept backorders and estimated delivery will be 6 weeks
Shipping:
US$97.95 (Fixed shipping cost)
Minimum Purchase:
1 unit(s)
Maximum Purchase:
1 unit(s)
Pin It

 Product Description

Please note the batteries are treated as Dangerous Goods by the courier companies. Therefore they must be sent by road freight (which takes longer), and there are special requirements and additional costs to courier them

Therefore, we have limited the purchase to 1 unit with a fixed freight cost. If you need more than 1 unit it is best to contact us and we can transact offline and provide a quote for the quantity you require

Product Description

This solution includes everything to power the WisGate Edge Pro or WisGate Edge Prime (with Battery Plus support) gateway with Solar energy anywhere where reliable LoRaWAN coverage is needed.

Battery Plus, combined with the Solar Panel Kit, is the latest RAK battery system incorporating a solar panel, mounting kit, solar charging system, and status monitoring. It is specially developed for the WisGate Edge Pro and WisGate Edge Prime(with Battery Plus support) gateways. It will allow reliable outdoor deployment of the gateway in remote off-grid scenarios where the power is unreliable or inaccessible. Not only will your gateway be powered 24/7, but you will also get all the battery information and status in the WisGateOS Web UI locally and in the WisDM platform remotely.

With this 50ah battery, your gateway can run for more than 5 days without sun. The 80W panel is specially selected to meet the needs of the Battery Plus system and with the included mounting kit the solution can be deployed quickly and easily.

Enhance your commercial and large-scale deployments with the RAK Battery Plus, backed by a Product/Public Liability Certificate of Insurance for unparalleled reliability and risk mitigation in even the most remote locations.

Battery Plus Features

  • Long Life Span - The Lithium Iron Phosphate battery can be expected to remain serviceable for more than 10 years, considering that it is charged and discharged once a day at room temperature (25°C).
  • Integrated Heating Function - The battery integrates a solar charger and heater, it can be connected to PV panels directly and charged under 0°C.
  • Lightweight Design - The weight of RAK9155 is no more than 8kg making installation by a single person easier.
  • High Waterproof Grade - With an IP65 rating of the enclosure, RAK9155 is suitable for both indoor and outdoor environments.

Solar Panel Kit Features (included with the RAK Battery Plus & Solar Panel kit variant)

  • Peak power: 80 W
  • Open circuit voltage (Voc): 24.4V
  • power voltage (Vmp): 20.5V
  • power current (Imp): 3.90A
  • Dimensions: 795x580x30mm
  • Operating temperature: -40°C to +85°C
  • The pole diameter supported by the mounting kit is 50-100 mm

Note:

Bundle Inclusion

  • Battery Plus power solution with 50Ah battery
  • Solar Panel with mounting kit
  • All cables for the connection between the Solar Panel, Battery Plus, and gateway are included

Package Inclusion

  • 1pc Solar Battery
  • 3pcs Power Cable
  • 1pc Mounting Kit
  • 3pcs Cable trap-Screw Mount
  • 1pc Carry equipment
    RAK Gateway and Antennae are NOT included

Hardware

  • Nominal capacity: 50Ah

  • Nominal voltage: 12.8V

  • Operating Voltage Range: 10 ~ 14.6V

  • Rated Energy: 640Wh

  • Standard charging current: 0.16 C (8 A)

  • Maximum Charging Continuous Current: 0.2 C (10 A)

  • Standard Discharge Current: 0.16 C (8 A)

  • Max Discharge Continuous Current: 0.2 C (10 A)

  • Integrated battery heater



Environmental

  • Charge temperature: 0 ℃~55 ℃

  • Discharge temperature: -15 ℃～60 ℃

  • Operational humidity: 20~80% RH

  • Storage Temperature: -20 ~ 50 °C

  • Storage humidity: 0~100% RH noncondensing

Enclosure

  • IP65-rated outdoor enclosure.

  • Material: plastic

  • Dimensions(L/W/H): 499x280x75（±3) mm

Connectors and buttons

  • 1x Load connector, 4 Pins, for connecting to RAK7289V2/CV2, RAK7240V2/CV2, or RAK power accessories – RAK9105U/P

  • 2x PV Input for Solar panel/s

  • On/Off button

Software

  • High-grade MPPT controller

  • BMS system

  • Battery Status and charge monitoring:

    • Battery status available in the RAK WisGateOS

    • Battery status available in the RAK WisDM remote management platform





Ensure Optimal Performance

A dedicated Service Power Adapter for Battery Plus is available. Add it to your order. It is suitable for the following purposes:

  • Initial Charging: Fully charge the Battery Plus in-house when received. Due to transportation limitations, the battery is charged to only 30%.
  • Long-term Storage: If you plan to store the Battery Plus for longer periods, fully charge the battery before storing it.
  • Deployment Preparation: Fully charge the Battery Plus before deployment to ensure it can power your solution.
  • Testing and Evaluation: Charge batteries during testing phases without the Solar Panel to verify their performance and longevity.

This adapter is an essential tool for maintaining and ensuring the efficiency of your RAK Battery Plus.
