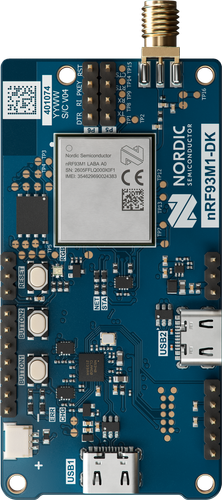

nRF93M1-DK

The nRF93M1 Development Kit (DK) is the ideal starting point for evaluating the nRF93M1
and prototyping your Cat 1 bis connected cellular IoT application.
The nRF93M1 DK pairs the ultra-low-power nRF54L15 as a host MCU with the nRF93M1 so
you can also prototype and develop your embedded application rapidly with nRF
Connect SDK and Nordic’s AI assisted development flow
The nRF93M1 DK is flexible and also works with any other embedded or rich-OS host via
the direct AT command interface, PPP, or USB — so you can prototype your preferred
way. It works out of the box, with a pre-loaded Onomondo SIM card and LTE antenna
included

MAIN BENEFITS
• On-board nRF93M1 LTE Cat 1 bis connectivity with Wi-Fi and cellular location
• nRF54L15 host MCU with AI assisted nRF Connect SDK development for rapid
application development
• Pin headers, buttons and USB-C interface for easy prototype and programming
• On-board SEGGER J-Link debugger and programmer — flash and debug over USB-C
• Flexible SIM (nano/4FF + eSIM), with pre-loaded Onomondo SIM card and LTE
antenna in the box
