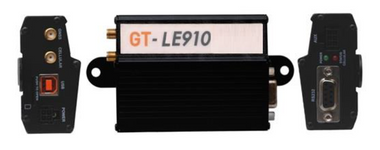

GT-LE910C1-WWX (LTE Cat 1 + 3G + 2G)

Hover over image to zoom

  • Image 1
Gatetel
AU$355.00
SKU:
GT-LE910C1-WWX
Shipping:
Calculated at checkout
Current Stock:
69

 Product Description

Includes Telit LE910C1-WWX module suitable for all network operators including Australia/New Zealand (LTE Cat 1)

The GT-LE910C1-WWX is a complete Cellular Terminal solution for UMTS/LTE.



Main features of the GT-LE910C1-WWX:

  • Incorporates Telit LE910C1-WWX module
    • The Telit module handles all UMTS/LTE/GPRS
  • OPTION: PIC16F1824 Microcontroller
    • For Modem ON/OFF and Watchdog
  • Frequency bands
    • 3G bands: B1, B2, B4, B5, B8, B19
    • 4G bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B26, B19, B20, B28
    • 2G Bands: B2, B3, B5, B8
  • Power supply
    • Single supply voltage 6V DC to 55V DC connector 4 pin micro-fit 3mm
  • ADC and GPIO inputs
    • Two outputs optocouplers open collector drive 100ma
    • Two inputs optocouplers, 0-55v
    • One ADC 10 bit, 0-55V connector 6 pin micro-fit 3mm
  • Communication
    • Modem Full RS232, connector D-Type 9pin (DB-9)
    • Modem USB, Connector USB Type B High retention
  • Antennas
    • UMTS/LTE via SMA connector
    • GNSS via SMA connector



Recommended Accessories for the GT-LE910C1-WWX:



Documents

icon-pdf2.gif GT-LE910C1-WWX Datasheet
