RAKARG15 - 8dBi Fiberglass Antenna - 900-930MHz

This is a high quality outdoor antenna designed to be deployed outdoors, for better range. The antenna connector is one with the antenna body, because this design increases the resistance of the antenna to external conditions further. It is IP67 rated, making it weather proof. It is designed to work in the sub-GHz bands like US915,AU915,KR920 and AS923.

The coverage that this antenna provides makes it ideal for deployment outdoors in a high altitude spot within the outskirts of an urban area or a small village, where there is a very low number of other buildings and people in general. In such a scenario it is likely that the signal will be able to cover a longer distance until it reaches the intended recipient of the transmission. If you need the transmission signal to reach the opposite side of the urban area or other near enough located villages or cities, it is likely that this antenna will provide you with the needed coverage.

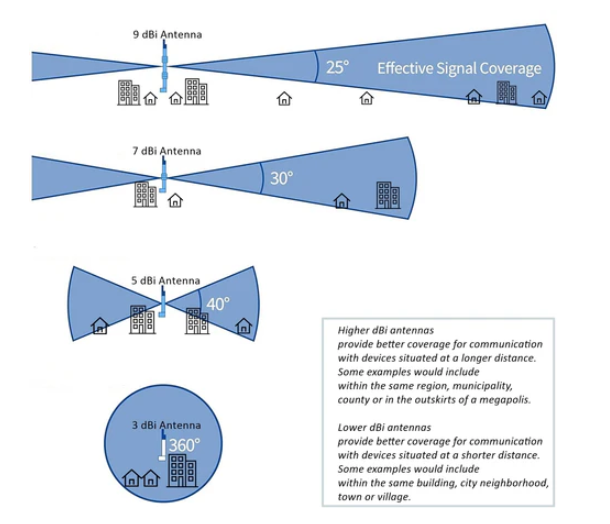

As this is a higher range dBi antenna, it is designed to provide better, fuller and more stable coverage for devices that are situated far away from it, as opposed to a lower dBi antenna, which would be able to do the same for devices that are situated close to its location. The general logic related to the difference between a higher dBi antenna and a lower dBi antenna is best understood by viewing the picture below.

Key Features

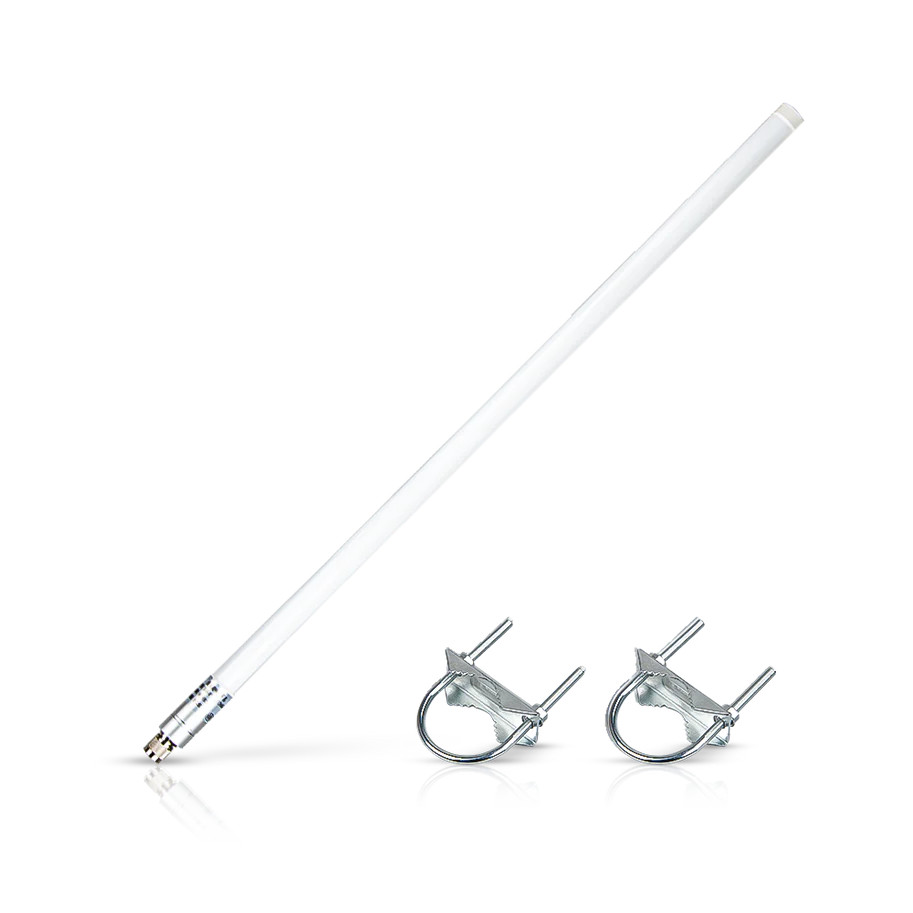

Product Inclusion

• 1pc Antenna
• 2pcs Mounting Brackets

VSWR

Peak Gain & Efficiency

PLEASE NOTE - DUE TO THE LENGTH OF THE ANTENNA, it costs more to ship and so there is a fixed shipping cost of A$50

PLEASE PURCHASE CABLES SEPERATELY TO THE LENGTH REQUIRED, and don't forget the surge arrestor!
